Adding README

Adding AIW multimodal question answering watermarking model
Update of the controller.py

README.md

+# MPAI-NNW v1.1 implementation
+
+
+This code refers to the implementation of the MPAI-NNW under MPAI-AIF, as described in https://mpai.community/wp-content/uploads/2023/10/Reference-Software-Neural-Network-Watermarking-V1.pdf.
+All the code is based in Python (APIs and .
+
+**Implemented APIs**
+1. MPAI_AIFS_GetAndParseArchive, unzip and parse json and AIMs.
+2. MPAI_AIFM_AIM_{Start,Pause,Resume,Stop,GetStatus}, to process on AIM/AIW.
+3. MPAI_AIFM_Port_Input_{Write,Read,Reset}, to process on the port of the AIMs.
+
+**Controller/User Agent**
+1. Controller is deployed under the socket library (waiting request from _input.py_).
+2. User Agent can trigger and run command by sending inputs.
+3. _config.py_ shares some variables among the different files.
+
+**Folders**
+- **all_AIW** stores all the different AIW that are implemented

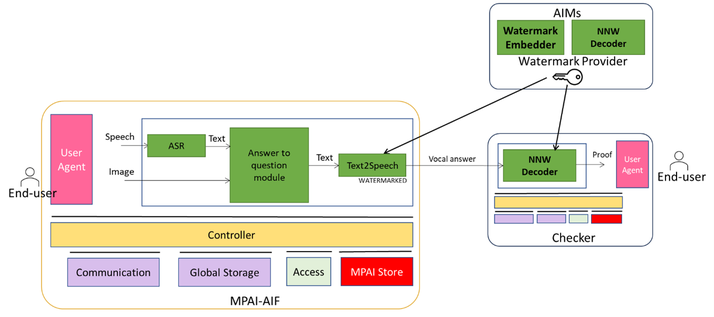

+  - NNW_NNW-QAM,NNW_NNW-QAM-Checker for the Multimodal Question Answering watermarking use case
+  - NNWImp,NNWRob for the controller_NNW
+- **resources** external elements for some use cases (uncorrelated images for ADI, context/question of the MQA, ...)
+- **Attacks** contains all the specified attacks of MPAI-NNW under the PyTorch Framework.
+
+
+**Specificity to MPAI-NNW**
+1. _utils.py_ contains function link to the dataset/dataloader under the PyToch framework.
+2. _UCHIDA.py_ / _ADI.py_ correspond to the Neural Network Watermarking technology under evaluation.
+3. AIW.zip is composed of the corresponding .json and the AIMs as Python file.
+4. Folder _Attacks_ contains all the specified attacks of MPAI-NNW under the PyTorch Framework.
+
+## Installation
+Code was designed and tested on an Ubuntu 20.04 operating system using anaconda 23.7.2 and Python 3.9.
+An environment with all the necessary libraries can be created using:
+```bash
+conda create --name <env> --file requirements.txt
+```
+
+## Run
+**Initialisation**
+First the Controller should be initialized (the command '-W ignore' can be added to avoid warning message during execution):
+```bash
+conda activate <env>
+python controller.py
+Controller Initialized
+```
+To send commands to the controller as a user agent,
+a second terminal should be open, and run:
+```bash
+conda activate <env>
+python input.py
+input: <your command>
+```
+
+**Emulation of MPAI Store**
+
+Emulate the folder of the computer as a website using the command:
+```bash
+python3 -m http.server
+```
+Then the command simulate the downloading of the AIW from a website:
+```bash
+conda activate <env>
+python input.py
+input: wget http://0.0.0.0:8000/[yourpath]/AIW.zip
+```
+
+### **List of command for controller**
+
+Open a window for selecting the folder AIW.zip:
+```bash
+(env) python input.py
+input: getparse
+```
+Run all, windows using tkinter will ask for the different files depending on the .zip parsed [AIW_MQA-NNW/AIW_MQA-NNW-Checker])
+```bash
+(env) python input.py
+input: run all
+```
+
+
+
+**List of command for controller_NNW** (old)
+for [AIWImp/AIWRob]
+
+Open a window for selecting the folder AIW.zip:
+```bash
+(env) python input.py
+input: getparse
+```
+Set the Computational Cost flag ON:
+```bash
+(env) python input.py
+input: ComputationalCost True
+```
+Run the Robustness AIW with the **1** Modification and **{"P":0.5}** Parameters
+```bash
+(env) python input.py
+input: run robustness 1 {"P":0.5}
+```
+Run the Imperceptibility AIW with **vgg16** as watermarked AIM and trained on the **CIFAR10** dataset
+```bash
+(env) python input.py
+input: run imperceptibility vgg16 cifar10
+```
+
+### Some warnings
+1. The AIW should be named AIW.zip and contained the .json and the needed AIMs.
+2. The code does not permit misspelling.
+
+# Licence
+Licence information are detailed in the MPAI website

all_AIW/AIW_MQA-NNW-Checker/AIMs_files.py

+import torch
+from transformers import AutoModelForQuestionAnswering
+from datasets import load_dataset
+from transformers import AutoTokenizer, pipeline
+from tqdm.auto import tqdm
+import numpy as np
+import collections
+import evaluate
+import torch
+from datasets import load_dataset
+from transformers import AutoTokenizer, pipeline
+from evaluate import load
+from scipy.io.wavfile import write
+from transformers.models.whisper.english_normalizer import BasicTextNormalizer
+from tqdm import tqdm
+from transformers.pipelines.pt_utils import KeyDataset
+from utils import *
+import wavmark
+from wavmark.utils import file_reader
+
+
+class NNWProof():
+    Answer = None
+    ##
+    Proof = False
+
+    def funcNNWProof(self, input):
+        '''
+        Verify the inference
+        '''
+
+        payload = [0,1,1,1,1,0,0,0,0,1,1,0,1,0,1,1]
+        model = wavmark.load_model().to(device)
+        signal = file_reader.read_as_single_channel(input, aim_sr=16000)
+        # 5.decode watermark
+        payload_decoded, _ = wavmark.decode_watermark(model, signal, show_progress=True)
+        if isinstance(payload_decoded,type(None)): return False
+        BER=(payload != payload_decoded).mean() * 100
+        return BER==0
+
+    def run(self):
+        self.Proof = self.funcNNWProof(self.Answer)
\ No newline at end of file

all_AIW/AIW_MQA-NNW-Checker/NNWchecker.json

+{
+  "$schema": "",
+  "$id": "",
+  "title": "WaterChecker",
+    "Identifier": {
+      "ImplementerID": "/* String assigned by IIDRA */",
+      "Specification": {
+        "Standard": "MPAI-NNW",
+        "AIW": "NNW-WaterChecker",
+        "AIM": "NNW-WaterChecker",
+        "Version": "1"
+      }
+    },
+    "APIProfile": "basic",
+    "Description": "This AIF check the answer produce by an NN",
+     "Types": [
+			{
+				"Name":"answer_t",
+				"Type":"uint8[]"
+			},
+		    {
+				"Name":"proof_t",
+				"Type":"boolean"
+			}
+     ],
+    "Ports": [
+			{
+				"Name":"Answer",
+				"Direction":"InputOutput",
+				"RecordType":"answer_t"
+			},
+			{
+				"Name":"Proof",
+				"Direction":"OutputInput",
+				"RecordType":"proof_t"
+			}
+		],
+	"SubAIMs": [
+		{
+            "Name": "NNWProof",
+            "Identifier": {
+              "ImplementerID": "/* String assigned by IIDRA */",
+              "Specification": {
+			    "Standard": "MPAI-NNW",
+                "AIW": "NNW-QAUsage",
+                "AIM": "NNWProof",
+                "Version": "1"
+              }
+            }
+        }
+      ],
+
+    "Topology": [
+				{
+					"Output":{
+						"AIMName":"",
+						"PortName":"Answer"
+					},
+					"Input":{
+						"AIMName":"NNWProof",
+						"PortName":"Answer"
+					}
+				},
+		        {
+					"Output":{
+						"AIMName":"NNWProof",
+						"PortName":"Proof"
+					},
+					"Input":{
+						"AIMName":"",
+						"PortName":"Proof"
+					}
+				}
+			]
+
+}

all_AIW/AIW_MQA-NNW/AIMs_files.py

+import torch
+from transformers import AutoModelForQuestionAnswering
+from datasets import load_dataset
+from transformers import AutoTokenizer, pipeline
+from tqdm.auto import tqdm
+import numpy as np
+import collections
+import evaluate
+import torch
+from datasets import load_dataset
+from transformers import AutoTokenizer, pipeline
+from evaluate import load
+from scipy.io.wavfile import write
+from transformers.models.whisper.english_normalizer import BasicTextNormalizer
+from tqdm import tqdm
+from transformers.pipelines.pt_utils import KeyDataset
+from PIL import Image
+import soundfile as sf
+from lavis.models import load_model_and_preprocess
+from utils import *
+import wavmark
+from playsound import playsound
+
+
+
+class QuestionAnswering():
+    QuestionText = None
+    RawImage = None
+
+    ##
+    AnswerText = None
+
+    def funcQuestionAnswering(self, raw_image_path,question):
+        '''
+        Apply an NN to answer the question
+        '''
+        raw_image=Image.open(raw_image_path).convert("RGB")
+        pipe = pipeline("visual-question-answering", model="Salesforce/blip-vqa-base")
+
+        output = pipe(raw_image, question, top_k=1)[0]
+        return output['answer']
+
+    def run(self):
+        self.AnswerText = self.funcQuestionAnswering(self.RawImage, self.QuestionText)
+
+class SpeechRecognition():
+    QuestionAudio = None
+    ##
+    QuestionText = None
+
+    def funcSpeechRecognition(self, input):
+        '''
+        Verify the inference
+        '''
+        if self.QuestionText == None:
+            playsound(input)
+        speech_reco = pipeline(
+            "automatic-speech-recognition", model="openai/whisper-base", device=device
+        )
+        res = speech_reco(input)
+        return res["text"]
+
+    def run(self):
+        self.QuestionText = self.funcSpeechRecognition(self.QuestionAudio)
+
+
+class SpeechSynthesis():
+    AnswerText = None
+    AnswerAudio= None
+
+    def funcSpeechSynthesis(self,input):
+        synthesiser = pipeline("text-to-speech", "microsoft/speecht5_tts")
+
+        embeddings_dataset = load_dataset("Matthijs/cmu-arctic-xvectors", split="validation")
+        speaker_embedding = torch.tensor(embeddings_dataset[7306]["xvector"]).unsqueeze(0)
+        # You can replace this embedding with your own as well.
+
+        speech = synthesiser("The answer to your question is:"+input,
+                             forward_params={"speaker_embeddings": speaker_embedding})
+
+
+        payload = [0,1,1,1,1,0,0,0,0,1,1,0,1,0,1,1]
+        model = wavmark.load_model().to(device)
+        signal, sample_rate = speech["audio"],speech["sampling_rate"]
+
+        watermarked_signal, _ = wavmark.encode_watermark(model, signal, payload, show_progress=True)
+        # you can save it as a new wav:
+        path_output = "AudioAnswer.wav"
+        sf.write(path_output, watermarked_signal, samplerate=16000)
+        playsound(path_output)
+
+        return path_output
+
+    def run(self):
+        self.AnswerAudio = self.funcSpeechSynthesis(self.AnswerText)
\ No newline at end of file

all_AIW/AIW_MQA-NNW/QuestionAnwseringSR.json

+{
+  "$schema": "",
+  "$id": "",
+  "title": "QASRUsage",
+    "Identifier": {
+      "ImplementerID": "/* String assigned by IIDRA */",
+      "Specification": {
+        "Standard": "MPAI-NNW",
+        "AIW": "NNW-QASRUsage",
+        "AIM": "NNW-QASRUsage",
+        "Version": "1"
+      }
+    },
+    "APIProfile": "basic",
+    "Description": "This AIF is an example of an integrated NNW use case",
+     "Types": [
+			{
+				"Name":"audio_t",
+				"Type":"uint8[]"
+			},
+   			{
+				"Name":"question_t",
+				"Type":"uint8[]"
+			},
+		    {
+				"Name":"image_t",
+				"Type":"uint8[]"
+			},
+			{
+				"Name":"answer_t",
+				"Type":"uint8[]"
+			},
+						{
+				"Name":"answer_audio_t",
+				"Type":"uint8[]"
+			}
+     ],
+    "Ports": [
+			{
+				"Name":"QuestionAudio",
+				"Direction":"InputOutput",
+				"RecordType":"audio_t"
+			},
+			{
+				"Name":"QuestionText",
+				"Direction":"InputOutput",
+				"RecordType":"question_t"
+			},
+			{
+				"Name":"RawImage",
+				"Direction":"InputOutput",
+				"RecordType":"image_t"
+			},
+			{
+				"Name":"AnswerText",
+				"Direction":"InputOutput",
+				"RecordType":"answer_t"
+			},
+			{
+				"Name":"AnswerAudio",
+				"Direction":"InputOutput",
+				"RecordType":"answer_audio_t"
+			}
+		],
+	"SubAIMs": [
+        {
+            "Name": "QuestionAnswering",
+            "Identifier": {
+              "ImplementerID": "/* String assigned by IIDRA */",
+              "Specification": {
+                "Standard": "MPAI-NNW",
+                "AIW": "NNW-QAUsage",
+                "AIM": "QuestionAnswering",
+                "Version": "1"
+              }
+            }
+        },
+        {
+            "Name": "SpeechRecognition",
+            "Identifier": {
+              "ImplementerID": "/* String assigned by IIDRA */",
+              "Specification": {
+			    "Standard": "MPAI-NNW",
+                "AIW": "NNW-QAUsage",
+                "AIM": "SpeechRecognition",
+                "Version": "1"
+              }
+            }
+        },
+        {
+            "Name": "SpeechSynthesis",
+            "Identifier": {
+              "ImplementerID": "/* String assigned by IIDRA */",
+              "Specification": {
+			    "Standard": "MPAI-NNW",
+                "AIW": "NNW-QAUsage",
+                "AIM": "SpeechSynthesis",
+                "Version": "1"
+              }
+            }
+        }
+      ],
+
+    "Topology": [
+				{
+					"Output":{
+						"AIMName":"",
+						"PortName":"QuestionAudio"
+					},
+					"Input":{
+						"AIMName":"SpeechRecognition",
+						"PortName":"QuestionAudio"
+					}
+				},
+				{
+					"Output":{
+						"AIMName":"SpeechRecognition",
+						"PortName":"QuestionText"
+					},
+					"Input":{
+						"AIMName":"QuestionAnswering",
+						"PortName":"QuestionText"
+					}
+				},
+				{
+					"Output":{
+						"AIMName":"",
+						"PortName":"RawImage"
+					},
+					"Input":{
+						"AIMName":"QuestionAnswering",
+						"PortName":"RawImage"
+					}
+				},
+		        {
+					"Output":{
+						"AIMName":"QuestionAnswering",
+						"PortName":"AnswerText"
+					},
+					"Input":{
+						"AIMName":"SpeechSynthesis",
+						"PortName":"AnswerText"
+					}
+				},
+								{
+					"Output":{
+						"AIMName":"SpeechSynthesis",
+						"PortName":"AnswerAudio"
+					},
+					"Input":{
+						"AIMName":"",
+						"PortName":"AnswerAudio"
+					}
+				},
+
+
+				{
+					"Output":{
+						"AIMName":"SpeechRecognition",
+						"PortName":"QuestionText"
+					},
+					"Input":{
+						"AIMName":"",
+						"PortName":"QuestionText"
+					}
+				}
+			]
+
+}

controller.py

 # controller.py https://www.bogotobogo.com/python/python_network_programming_server_client.php
 import socket
 import time
-from Attacks import *
-from UCHIDA import Uchi_tools
-from ADI import Adi_tools
 from multiprocessing import Process
 from APIs import *
 import psutil
 import os
+
 import ast
 import tkinter as tk
-from tkinter import filedialog
+from tkinter import filedialog, simpledialog
 import wget
 import config
-
+from PIL import Image

 # create a socket object
 serversocket = socket.socket(
@@ -22,7 +20,7 @@ serversocket = socket.socket(
 # get local machine name
 host = socket.gethostname()

-port = 12345
+port = 12468

 # bind to the port
 serversocket.bind((host, port))
@@ -58,9 +56,10 @@ while True:
     elif "getparse" in message[0].lower():

         #print(type(message[1]),message[1]) #always str
+
         root = tk.Tk()
         root.withdraw()
-        filename = filedialog.askopenfilename(title='Select the parameter file', filetypes=(("Text files",
+        filename = filedialog.askopenfilename(title='Select the zip (json and AIMs)', filetypes=(("Text files",
                                                                                              "*.zip"),
                                                                                             ("all files",
                                                                                              "*.*")))
@@ -77,6 +76,7 @@ while True:
         # print(AIMs.keys())
         # print(config.Topology)
         print(".json parsed")
+
     elif 'write' in message[0].lower():
         ## message[1] AIM_name, message[2] port_name, message[3] what to write
         MPAI_AIFM_Port_Input_Write(message[1],message[2],message[3])
@@ -88,103 +88,28 @@ while True:
         ## message[1] AIM_name, message[2] port_name
         MPAI_AIFM_Port_Reset(message[1],message[2])

-    elif 'ComputationalCost' in message[0].lower():
-        CompCostFlag=ast.literal_eval(str(message[1]))
-
     elif 'run' in message[0].lower():
-        ### here you can want for a next message instead
-        # print("waiting for the type of run")
-        # clientsocket, addr = serversocket.accept()
-        # data = clientsocket.recv(1024)
-        # message = data.decode()
-        # message = message.split()
-        if "robustness" in message[1].lower():
-            # run robustness 1 {"P":.1}
-            param = ast.literal_eval(str(message[3]))
-            M_ID = int(message[2])
-            root = tk.Tk()
-            root.withdraw()
-            reload = filedialog.askopenfilename(title='Select the parameter file') # show an "Open" dialog box and return the path to the selected file
-            watermarked_parameters = torch.load(reload, map_location=torch.device('cpu'))
-            config.message["WatermarkedParameter"] = watermarked_parameters
-            tools = Uchi_tools()
-            root = tk.Tk()
-            root.withdraw()
-            reload_npy = filedialog.askopenfilename(title='Select the watermarking_dict')
-            watermarking_dict = np.load(reload_npy, allow_pickle=True).item()
-            MPAI_AIFM_Port_Input_Write("WatermarkDecoder", "tools", tools)
-            MPAI_AIFM_Port_Input_Write("WatermarkDecoder", "watermarking_dict", watermarking_dict)
-            MPAI_AIFM_Port_Input_Write("Comparator", "Payload", watermarking_dict["watermark"])
-
-
-
-            ### Automatized
-            for elements in config.Topology:
-                # print(elements)
-                if elements["Output"]["AIMName"]=="":
-                    MPAI_AIFM_Port_Input_Write(elements["Input"]["AIMName"], elements["Input"]["PortName"],
-                                               config.message[elements["Output"]["PortName"]])
-                else:
-                    if CompCostFlag:
-                        time1 = time.time()
-                    MPAI_AIFM_AIM_Start(elements["Output"]["AIMName"])
-                    if CompCostFlag:
-                        time2 = time.time()
-                    if elements["Input"]["AIMName"]=="":
-                        print("Output of",elements["Output"]["AIMName"],"port",elements["Output"]["PortName"] )
-                        print(MPAI_AIFM_Port_Output_Read(elements["Output"]["AIMName"],elements["Input"]["PortName"]))
-                    else:
-                        MPAI_AIFM_Port_Input_Write(elements["Input"]["AIMName"], elements["Input"]["PortName"],
-                                               MPAI_AIFM_Port_Output_Read(elements["Output"]["AIMName"],elements["Output"]["PortName"]))
-
-
-            MPAI_AIFM_AIM_Start("Comparator")
-            print('BER : %s' % (MPAI_AIFM_Port_Output_Read("Comparator","output_0")))
-            if CompCostFlag:
-                print("time of execution: %.5f sec" %(time2-time1))
-        elif "imperceptibility" in message[1].lower():
-            ## run imperceptibility vgg16 cifar10
-            if "vgg16" in message[2].lower():
-                model = tv.models.vgg16()
-                model.classifier = nn.Linear(25088, 10)
-            else:
-                print(message[2],"not found - default loading vgg16")
-                model = tv.models.vgg16()
-                model.classifier = nn.Linear(25088, 10)
-
-            if "cifar10" in message[3].lower():
-                trainset,testset,tfm=CIFAR10_dataset()
+        for elements in config.Topology:
+            # print(elements)
+            if elements["Output"]["AIMName"]=="": ## no outputs means it's an input
+                ### TBD better: if conditions link to the port reading
+                root = tk.Tk()
+                root.withdraw()
+                path = filedialog.askopenfilename(title='Select '+str(elements["Input"]["PortName"]))
+
+                MPAI_AIFM_Port_Input_Write(elements["Input"]["AIMName"], elements["Input"]["PortName"],
+                                           path)
             else:
-                print(message[3],"not found - default loading CIFAR10")
-                trainset,testset,tfm=CIFAR10_dataset()
-
-            MPAI_AIFM_Port_Input_Write("WatermarkEmbedder", "AIM", model)
-            if CompCostFlag:
-                time1=time.time()
-            MPAI_AIFM_AIM_Start("WatermarkEmbedder")
-            if CompCostFlag:
-                time2=time.time()
-
-            MPAI_AIFM_Port_Input_Write("AIM", "model", model)
-            MPAI_AIFM_Port_Input_Write("AIM", "parameters", MPAI_AIFM_Port_Output_Read("WatermarkEmbedder","output_0"))
-            MPAI_AIFM_Port_Input_Write("AIM", "testingDataset", testset)
-
-            MPAI_AIFM_AIM_Start("AIM")
-            print('AIM_watermarked_result : %s' % (MPAI_AIFM_Port_Output_Read("AIM","output_0")))
-            if CompCostFlag:
-                print("time of execution: %.5f sec" %(time2-time1))
-
-            MPAI_AIFM_Port_Input_Write("AIMtrainer", "AIM", model)
-            MPAI_AIFM_AIM_Start("AIMtrainer")
-            MPAI_AIFM_Port_Input_Write("AIM", "model", model)
-            MPAI_AIFM_Port_Input_Write("AIM", "parameters", MPAI_AIFM_Port_Output_Read("AIMtrainer","output_0"))
-            MPAI_AIFM_Port_Input_Write("AIM", "testingDataset", testset)
-
-            MPAI_AIFM_AIM_Start("AIM")
-            print('AIM_unwatermarked_result : %s' % (MPAI_AIFM_Port_Output_Read("AIM", "output_0")))
+                MPAI_AIFM_AIM_Start(elements["Output"]["AIMName"])
+                if elements["Input"]["AIMName"]=="": ## no inputs means it's an output
+                    print("Output of",elements["Output"]["AIMName"],"- port",elements["Output"]["PortName"] )
+                    print()
+                    print(MPAI_AIFM_Port_Output_Read(elements["Output"]["AIMName"],elements["Input"]["PortName"]))
+                    print()
+                else:
+                    MPAI_AIFM_Port_Input_Write(elements["Input"]["AIMName"], elements["Input"]["PortName"],
+                                           MPAI_AIFM_Port_Output_Read(elements["Output"]["AIMName"],elements["Output"]["PortName"]))

-        else:
-            print(message[1].lower(),"not implemented")

     elif 'status' in message[0].lower():
         print(config.dict_process)

controller_NNW.py

+# controller.py https://www.bogotobogo.com/python/python_network_programming_server_client.php
+import socket
+import time
+from Attacks import *
+from UCHIDA import Uchi_tools
+from ADI import Adi_tools
+from multiprocessing import Process
+from APIs import *
+import psutil
+import os
+import ast
+import tkinter as tk
+from tkinter import filedialog
+import wget
+import config
+
+
+# create a socket object
+serversocket = socket.socket(
+	        socket.AF_INET, socket.SOCK_STREAM)
+
+# get local machine name
+host = socket.gethostname()
+
+port = 12345
+
+# bind to the port
+serversocket.bind((host, port))
+
+# queue up to 5 requests
+serversocket.listen(5)
+print("Controller Initialized")
+CompCostFlag=False
+while True:
+    # establish a connection
+    clientsocket, addr = serversocket.accept()
+    # print("Got a connection from %s" % str(addr))
+    # currentTime = time.ctime(time.time()) + "\r\n"
+    data=clientsocket.recv(1024)
+    message=data.decode()
+    message = message.split()
+    if not data: break
+    if "help" in message[0].lower():
+        ### to be updated
+        print(" ----------------------------------------")
+        print(" this program is the implementation of NNW in the AIF")
+        print(" you can run AIM/AIW by sending 'run XX' ")
+        print(" you can pause AIM/AIW by sending 'stop XX' ")
+        print(" you can resume AIM/AIW by sending 'resume XX' ")
+        print(" you can obtain the status of AIM/AIW by sending 'status XX' ")
+        print(" you can end the program by typing 'exit'")
+        print(" ----------------------------------------")
+
+    elif "wget" in message[0].lower():
+        test=wget.download(message[1])
+        print(type(test))
+
+    elif "getparse" in message[0].lower():
+
+        #print(type(message[1]),message[1]) #always str
+        root = tk.Tk()
+        root.withdraw()
+        filename = filedialog.askopenfilename(title='Select the parameter file', filetypes=(("Text files",
+                                                                                             "*.zip"),
+                                                                                            ("all files",
+                                                                                             "*.*")))
+        json_dict = MPAI_AIFS_GetAndParseArchive(filename)
+        time.sleep(.5)
+        import AIW.AIMs_files as AIMs_file
+        config.AIM_dict = json_dict['SubAIMs']
+        config.Topology = json_dict['Topology'] ### topology
+
+        for i in range(len(json_dict['SubAIMs'])):
+            config.AIMs[config.AIM_dict[i]["Name"]] = getattr(AIMs_file, config.AIM_dict[i]["Name"])()
+
+        ### AIMs file should be in the .zip
+        # print(AIMs.keys())
+        # print(config.Topology)
+        print(".json parsed")
+    elif 'write' in message[0].lower():
+        ## message[1] AIM_name, message[2] port_name, message[3] what to write
+        MPAI_AIFM_Port_Input_Write(message[1],message[2],message[3])
+    elif "read" in message[0].lower():
+        ## message[1] AIM_name, message[2] port_name
+        result=MPAI_AIFM_Port_Output_Read(message[1],message[2])
+        print(message[2], "of", message[1], ":", result, type(result))
+    elif "reset" in message[0].lower():
+        ## message[1] AIM_name, message[2] port_name
+        MPAI_AIFM_Port_Reset(message[1],message[2])
+
+    elif 'ComputationalCost' in message[0].lower():
+        CompCostFlag=ast.literal_eval(str(message[1]))
+
+    elif 'run' in message[0].lower():
+        ### here you can want for a next message instead
+        # print("waiting for the type of run")
+        # clientsocket, addr = serversocket.accept()
+        # data = clientsocket.recv(1024)
+        # message = data.decode()
+        # message = message.split()
+        if "robustness" in message[1].lower():
+            # run robustness 1 {"P":.1}
+            param = ast.literal_eval(str(message[3]))
+            M_ID = int(message[2])
+            root = tk.Tk()
+            root.withdraw()
+            reload = filedialog.askopenfilename(title='Select the parameter file') # show an "Open" dialog box and return the path to the selected file
+            watermarked_parameters = torch.load(reload, map_location=torch.device('cpu'))
+            config.message["WatermarkedParameter"] = watermarked_parameters
+            tools = Uchi_tools()
+            root = tk.Tk()
+            root.withdraw()
+            reload_npy = filedialog.askopenfilename(title='Select the watermarking_dict')
+            watermarking_dict = np.load(reload_npy, allow_pickle=True).item()
+            MPAI_AIFM_Port_Input_Write("WatermarkDecoder", "tools", tools)
+            MPAI_AIFM_Port_Input_Write("WatermarkDecoder", "watermarking_dict", watermarking_dict)
+            MPAI_AIFM_Port_Input_Write("Comparator", "Payload", watermarking_dict["watermark"])
+
+
+
+            ### Automatized
+            for elements in config.Topology:
+                # print(elements)
+                if elements["Output"]["AIMName"]=="":
+                    MPAI_AIFM_Port_Input_Write(elements["Input"]["AIMName"], elements["Input"]["PortName"],
+                                               config.message[elements["Output"]["PortName"]])
+                else:
+                    if CompCostFlag:
+                        time1 = time.time()
+                    MPAI_AIFM_AIM_Start(elements["Output"]["AIMName"])
+                    if CompCostFlag:
+                        time2 = time.time()
+                    if elements["Input"]["AIMName"]=="":
+                        print("Output of",elements["Output"]["AIMName"],"port",elements["Output"]["PortName"] )
+                        print(MPAI_AIFM_Port_Output_Read(elements["Output"]["AIMName"],elements["Input"]["PortName"]))
+                    else:
+                        MPAI_AIFM_Port_Input_Write(elements["Input"]["AIMName"], elements["Input"]["PortName"],
+                                               MPAI_AIFM_Port_Output_Read(elements["Output"]["AIMName"],elements["Output"]["PortName"]))
+
+
+            MPAI_AIFM_AIM_Start("Comparator")
+            print('BER : %s' % (MPAI_AIFM_Port_Output_Read("Comparator","output_0")))
+            if CompCostFlag:
+                print("time of execution: %.5f sec" %(time2-time1))
+        elif "imperceptibility" in message[1].lower():
+            ## run imperceptibility vgg16 cifar10
+            if "vgg16" in message[2].lower():
+                model = tv.models.vgg16()
+                model.classifier = nn.Linear(25088, 10)
+            else:
+                print(message[2],"not found - default loading vgg16")
+                model = tv.models.vgg16()
+                model.classifier = nn.Linear(25088, 10)
+
+            if "cifar10" in message[3].lower():
+                trainset,testset,tfm=CIFAR10_dataset()
+            else:
+                print(message[3],"not found - default loading CIFAR10")
+                trainset,testset,tfm=CIFAR10_dataset()
+
+            MPAI_AIFM_Port_Input_Write("WatermarkEmbedder", "AIM", model)
+            if CompCostFlag:
+                time1=time.time()
+            MPAI_AIFM_AIM_Start("WatermarkEmbedder")
+            if CompCostFlag:
+                time2=time.time()
+
+            MPAI_AIFM_Port_Input_Write("AIM", "model", model)
+            MPAI_AIFM_Port_Input_Write("AIM", "parameters", MPAI_AIFM_Port_Output_Read("WatermarkEmbedder","output_0"))
+            MPAI_AIFM_Port_Input_Write("AIM", "testingDataset", testset)
+
+            MPAI_AIFM_AIM_Start("AIM")
+            print('AIM_watermarked_result : %s' % (MPAI_AIFM_Port_Output_Read("AIM","output_0")))
+            if CompCostFlag:
+                print("time of execution: %.5f sec" %(time2-time1))
+
+            MPAI_AIFM_Port_Input_Write("AIMtrainer", "AIM", model)
+            MPAI_AIFM_AIM_Start("AIMtrainer")
+            MPAI_AIFM_Port_Input_Write("AIM", "model", model)
+            MPAI_AIFM_Port_Input_Write("AIM", "parameters", MPAI_AIFM_Port_Output_Read("AIMtrainer","output_0"))
+            MPAI_AIFM_Port_Input_Write("AIM", "testingDataset", testset)
+
+            MPAI_AIFM_AIM_Start("AIM")
+            print('AIM_unwatermarked_result : %s' % (MPAI_AIFM_Port_Output_Read("AIM", "output_0")))
+
+        else:
+            print(message[1].lower(),"not implemented")
+
+    elif 'status' in message[0].lower():
+        print(config.dict_process)
+        MPAI_AIFM_AIM_GetStatus(message[1])
+    elif 'pause' in message[0].lower():
+        MPAI_AIFM_AIM_Pause(message[1])
+    elif 'resume' in message[0].lower():
+        MPAI_AIFM_AIM_Resume(message[1])
+
+    elif 'stop' in message[0].lower():
+        if message[1].lower() in config.dict_process:
+            config.dict_process[message[1]].terminate()
+            print( message[1], "stopped")
+        else:
+            print(message[1], "isn't running")
+    elif "exit" in message[0].lower():
+        print("ending session...")
+
+        break
+    else:
+        print("input not implemented")
+    clientsocket.close()
+print("session ended")
+
+### TO DO https://docs.python.org/3/library/multiprocessing.html

resources/MPAIui.py

+import torch
+import os
+import wavmark
+from wavmark.utils import file_reader
+from PyQt5 import QtCore, QtGui, QtWidgets
+device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
+global file_path_g
+
+
+def funcNNWProof( input):
+    '''
+    Verify the inference
+    '''
+
+    payload = [0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 0, 1, 0, 1, 1]
+    model = wavmark.load_model().to(device)
+    signal = file_reader.read_as_single_channel(input, aim_sr=16000)
+    # 5.decode watermark
+    payload_decoded, _ = wavmark.decode_watermark(model, signal, show_progress=True)
+    if isinstance(payload_decoded, type(None)): return False
+    BER = (payload != payload_decoded).mean() * 100
+    return BER == 0
+
+
+
+
+class DragDropMainWindow(QtWidgets.QMainWindow):
+    fileDropped = QtCore.pyqtSignal(str)
+
+    def __init__(self, parent=None):
+        super(DragDropMainWindow, self).__init__(parent)
+        self.setAcceptDrops(True)
+
+    def dragEnterEvent(self, event):
+        if event.mimeData().hasUrls():
+            event.accept()
+        else:
+            event.ignore()
+
+    def dropEvent(self, event):
+        for url in event.mimeData().urls():
+            file_path = str(url.toLocalFile())
+            self.fileDropped.emit(file_path)
+
+
+class Ui_MainWindow(object):
+    def setupUi(self, MainWindow):
+        MainWindow.setObjectName("MainWindow")
+        MainWindow.resize(800, 600)
+        self.centralwidget = QtWidgets.QWidget(MainWindow)
+        self.centralwidget.setObjectName("centralwidget")
+        self.pushButton = QtWidgets.QPushButton(self.centralwidget)
+        self.pushButton.setGeometry(QtCore.QRect(300, 470, 221, 61))
+        self.pushButton.setObjectName("pushButton")
+        self.pushButton_2 = QtWidgets.QPushButton(self.centralwidget)
+        self.pushButton_2.setGeometry(QtCore.QRect(590, 60, 191, 81))
+        self.pushButton_2.setObjectName("pushButton_2")
+        self.label = QtWidgets.QLabel(self.centralwidget)
+        self.label.setGeometry(QtCore.QRect(70, 110, 721, 391))
+        self.label.setObjectName("label")
+        MainWindow.setCentralWidget(self.centralwidget)
+        self.statusbar = QtWidgets.QStatusBar(MainWindow)
+        self.statusbar.setObjectName("statusbar")
+        MainWindow.setStatusBar(self.statusbar)
+
+        self.retranslateUi(MainWindow)
+        QtCore.QMetaObject.connectSlotsByName(MainWindow)
+
+        # Connect button clicks to functions
+        self.pushButton.clicked.connect(self.run_UseCase)
+        self.pushButton_2.clicked.connect(self.watermark_proof)
+
+        self.file_path_g=None
+
+    def retranslateUi(self, MainWindow):
+        _translate = QtCore.QCoreApplication.translate
+        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
+        self.pushButton.setText(_translate("MainWindow", "Running the UseCase"))
+        self.pushButton_2.setText(_translate("MainWindow", "Watermarking proof"))
+        self.label.setText(_translate("MainWindow", "<html><head/><body><p><img src=\"MPAI_NNW-MQA.png\"/></p></body></html>"))
+
+    def run_UseCase(self):
+        # Function to execute when the "Running the UseCase" button is clicked
+        print("Openning new Window")
+        os.system("gnome-terminal & disown")
+
+    def watermark_proof(self):
+        # Function to execute when the "WaterMarking proof" button is clicked
+        if self.file_path_g==None:
+            print("Please, first drag an audio file")
+        else:
+            print("Processing...")
+            answer=funcNNWProof(self.file_path_g)
+            if answer:
+                print("This audio is watermarked")
+            else:
+                print("This audio is not watermarked")
+
+if __name__ == "__main__":
+    import sys
+
+    app = QtWidgets.QApplication(sys.argv)
+    MainWindow = DragDropMainWindow()
+    ui = Ui_MainWindow()
+    ui.setupUi(MainWindow)
+
+    def file_dropped(file_path):
+        ui.file_path_g=file_path
+
+
+    MainWindow.fileDropped.connect(file_dropped)
+
+    MainWindow.show()
+    sys.exit(app.exec_())
